Details

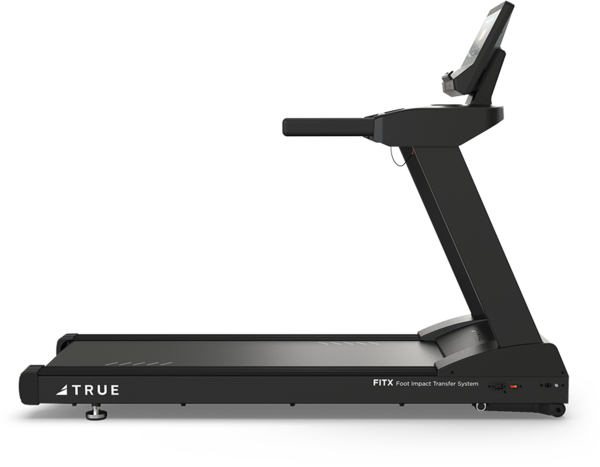

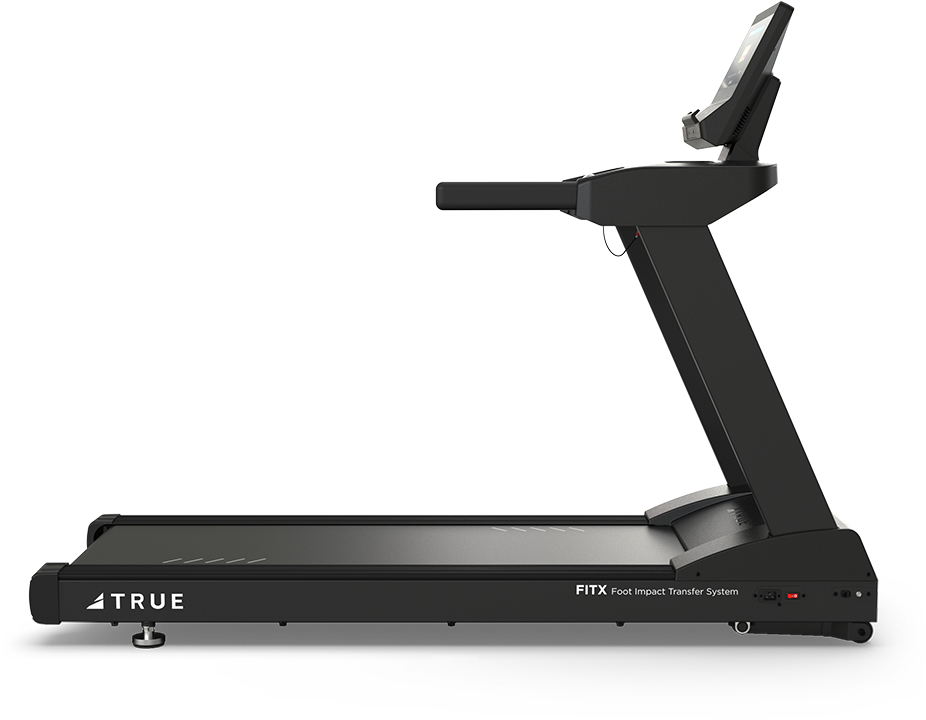

Maximize space in your facility with the Launch Treadmill’s compact frame. The dependable drive system and sturdy deck ensure smooth operation for years to come.
Features:
• 12.5 MPH (20 KPH) Maximum Speed
• 15% Maximum Incline
• TRUE FITX (Foot Impact Transfer) System
• Choose from three UNITE consoles (LED, 10" Touchscreen, 16" Touchscreen) to best suit your gym needs

The vibrant, high-definition UNITE 16” Touchscreen Console seamlessly combines performance, connectivity, and entertainment to exceed the expectations of your users. Offering a library of engaging workouts, wireless charging, and a variety of apps and entertainment streaming options, users can stay connected while staying focused on their fitness goals. Compatible with all Apex, Gravity, Launch, and Vapor cardio equipment.
- Vivid 16” touchscreen display
- Extensive entertainment options with Google Mobile Services (GMS)
- Seamless wearable integration
- Screen mirroring
- Built-in workout programs
- Wireless charging
- Bluetooth® and Polar® compatibility
- Optional real-time asset management

The UNITE 10” Touchscreen delivers the same vivid display, advanced performance, and extensive features as its larger counterparts, but in a compact size. With built-in workout programs, wireless charging, and a wide array of entertainment options, it offers a premium, user-friendly experience for exercisers. Designed to seamlessly integrate with all Apex, Gravity, Launch, and Vapor cardio equipment.
- Vivid 10” touchscreen display
- Extensive entertainment options with Google Mobile Services (GMS)
- Seamless wearable integration
- Screen mirroring
- Built-in workout programs
- Wireless charging
- Bluetooth® and Polar® compatibility
- Optional real-time asset management

With a sleek and streamlined design, our all new UNITE LED Console offers an even more user-friendly interface and enhanced functionality, making it easier than ever for users to achieve their fitness goals. Featuring 8 dedicated data points, users have the flexibility to customize their workout experience by choosing which metrics they want to see.
- Large LED display with intuitive navigation
- Self-generated
- 8 data points for detailed workout feedback
- Dedicated message center
- 10-key pin pad for easy set-up and data entry
- Quick-access workout program keys
- Reading rack
Specs
| PowerSource | 120V/15A (NEMA 5-15 Receptacle) |
|---|---|
| Cord Length | 12' / 3M |
| Drive Motor | 3 HP DC |
| Incline Motor | 1,200 lbs of thrust |
| Belt | Low Maintenance |
| Deck | Low Maintenance |
| Rollers | 3" / 8 cm w/ Sealed Bearings |
| Impact System | TRUE FITX (Foot Impact Transfer) System |
| Frame Construction | Robotically Welded Heavy-Gauge Steel |
| Speed Range | 0.5 to 12.5 MPH / 0.8 to 20 KPH |
| Grade Range | 0% to 15% |
| Color | Matte Black |
| Contact HR Monitor | Yes |
| Console Options | UNITE 16", UNITE 10", and UNITE LED |
| Safety Clip | Standard |
| Straddle Covers | Plastic |
| User Detection | No |
| Accessories | Water Bottle Holder (2), Accessory Tray, Reading Rack/Tablet Holder |
| Footprint | 79" L x 32.6" W x 60" H / 201 cm x 83 cm x 152 cm |
| Running Surface | 60" L x 21.7" W / 152 cm x 55 cm |
| Machine Weight | 322 lbs / 146 kg |
| Shipping Weight | 346 lbs / 157 kg |
| Maximum User Weight | 400 lbs / 181 kg |
| Step-Up Height | 6.5" / 17 cm |
| Commercial Warranty | Limited-Use Commercial Warranty |
| Limited-Use Frame | 7 Years |
| Limited-Use Parts | 3 Years |
| Limited-Use Labor | 1 Year |
* Subject to change without notice.
